MEDOR® Advanced Technologies for Gas Analysis

The line of automatic gas chromatographs is dedicated to continuous monitoring of mercaptan, H2S (Hydrogen Sulfide) and Total Sulfur Analysis. Fully automated, rugged, industrial analyzers provide an ideal solution for companies and operators seeking to increase data capture and maximize efficiency.

A new standard for continuous odorant monitoring

Laboratory device with a touchscreen display, labeled 'energy MEDOR', featuring various indicator lights and ports, used for scientific analysis.

  • SETS A NEW STANDARD FOR LOW MAINTENANCE CONTINUOUS COMMERCIAL ODORANT MONITORING

    • FULL SPECIATION OF SULFUR COMPOUNDS (H2S, THT, MERCAPTANS)

    • AUTONOMOUS PLATFORM

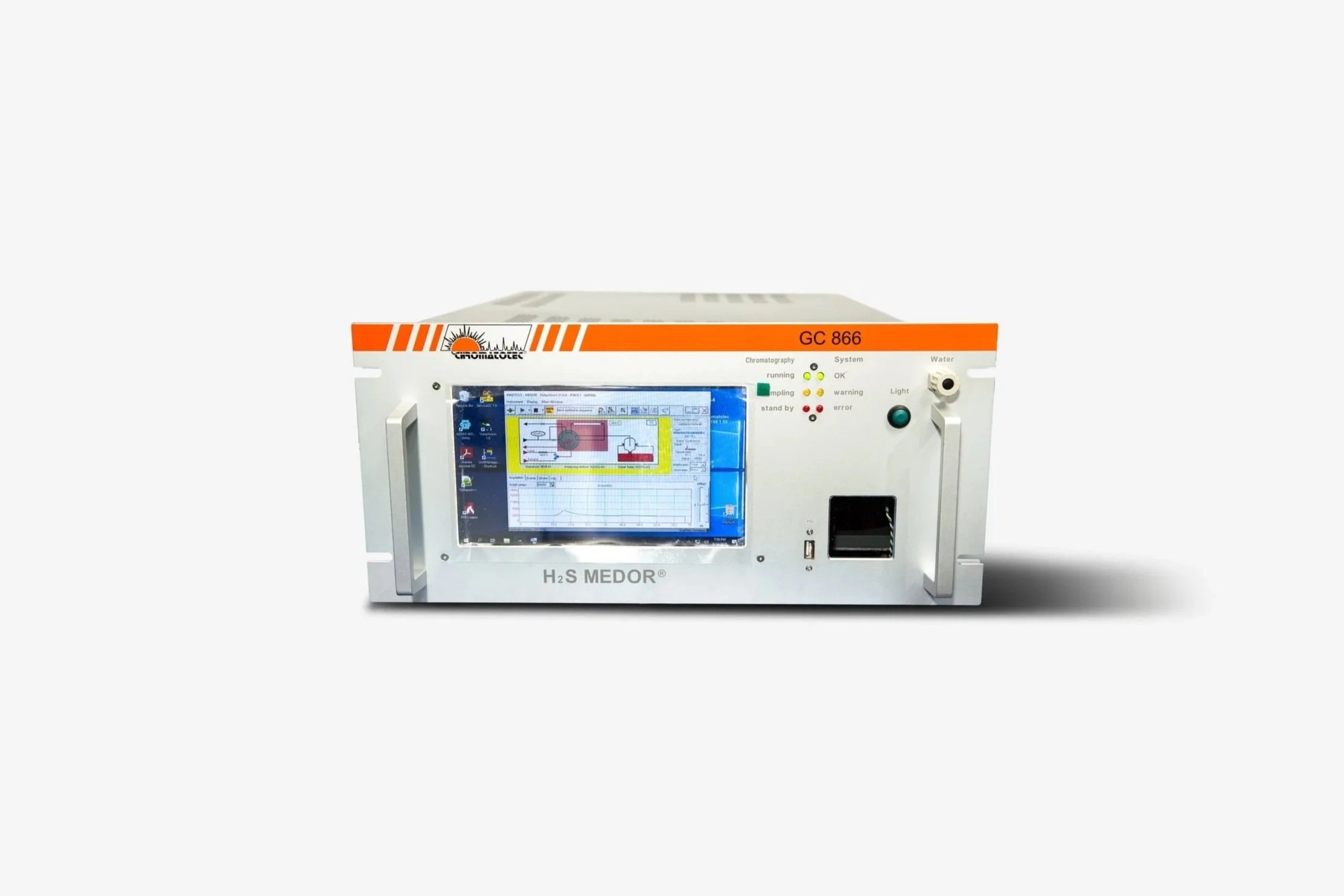

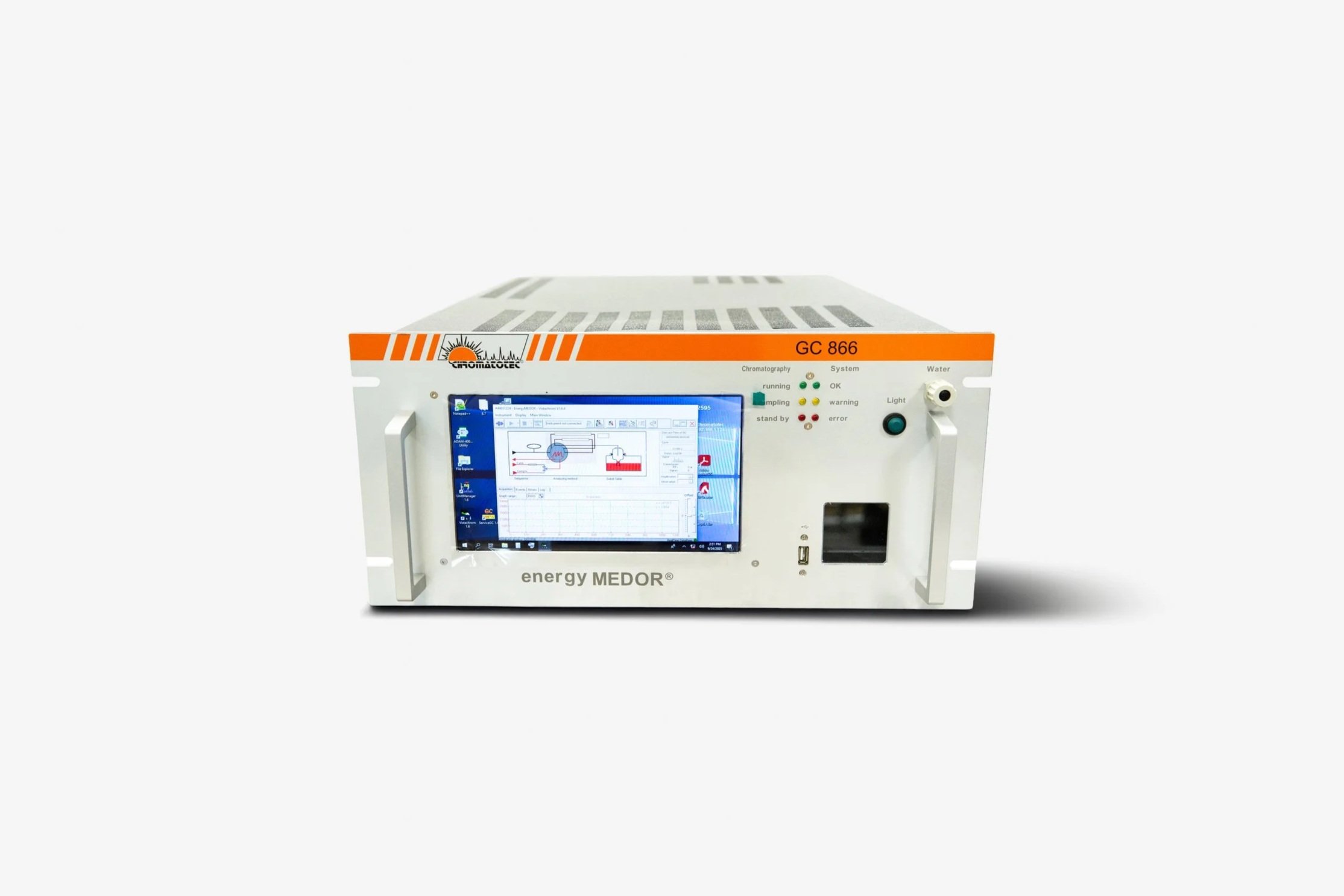

Laboratory equipment with digital display and control panel, labeled GC 866, used for chromatography analysis.

  • A ROBUST, AUTOMATIC GAS CHROMATOGRAPH DEDICATED TO H2S AND TOTAL SULFUR ANALYSIS IN DIFFERENT MATRICES.

    • H2S MEDOR PPM MEASURES AT PPM LEVELS

    • H2S MEDOR PPB MEASURES AT PPB LEVELS

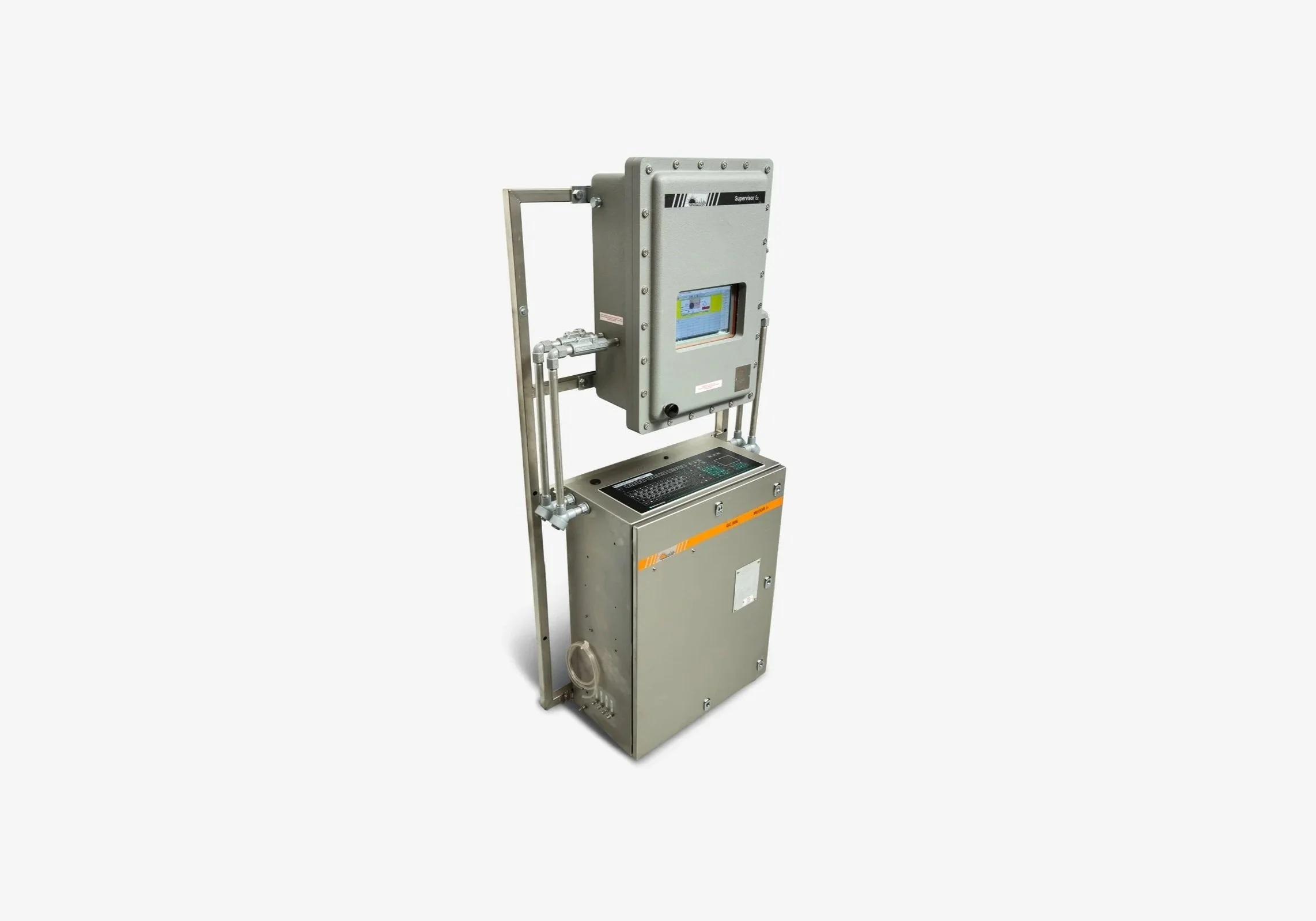

Industrial control panel with embedded touchscreen display and electrical wiring.

  • ROBUST, AUTOMATIC GAS CHROMATOGRAPH DESIGNED FOR CLASS 1 DIVISION 2 AND CLASS 1 DIVISION 1

    • FULL SPECIATION OF SULFUR COMPOUNDS (H2S, THT, MERCAPTANS)

Built-to-Spec Solutions

MEDOR® delivers proven gas chromatography for unsurpassed separation of sulfur compounds and exceptional results in an autonomous platform. The analyzers are housed in climate controlled buildings in configurations designed and built for specific needs.

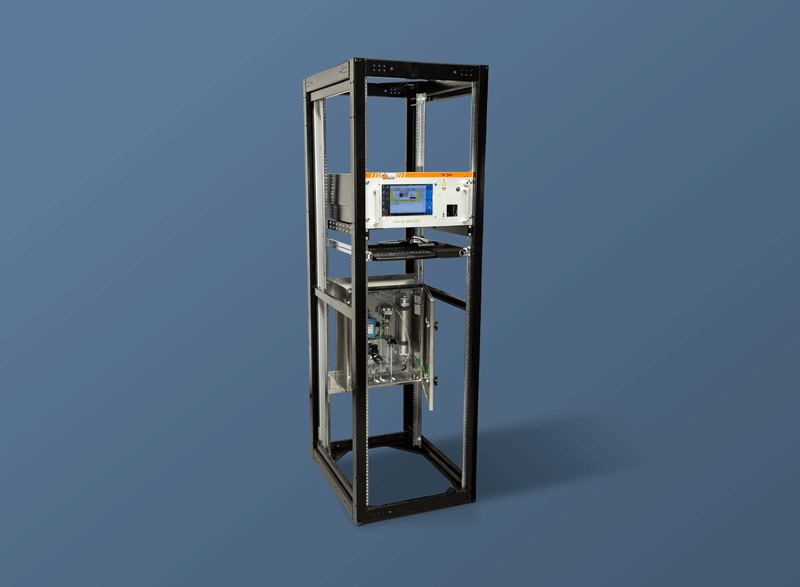

A tall industrial machine frame with electronic components, a touchscreen, and mechanical parts inside, set against a plain blue background.

EnergyMEDOR® Rack Mounted

ENCLOSED RACK WITH HVAC ALSO AVAILABLE

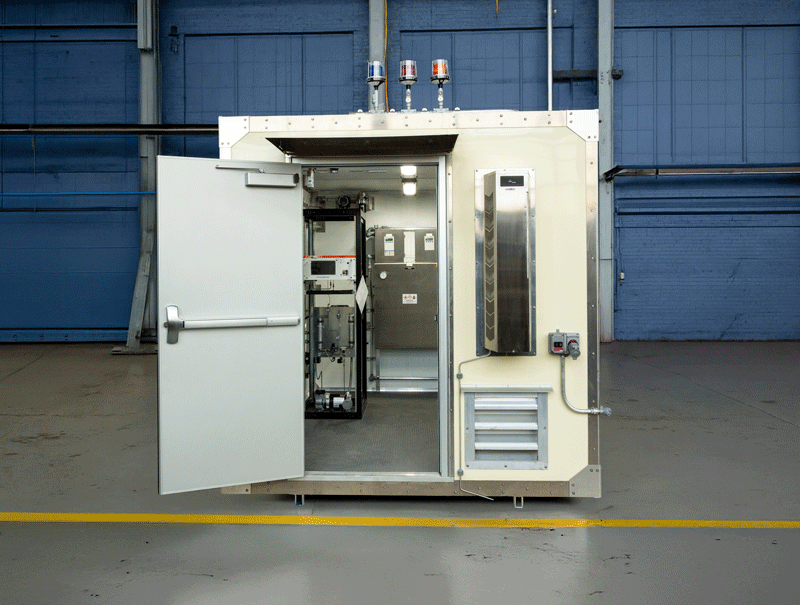

A small white industrial or laboratory enclosure with equipment inside, located in a spacious warehouse or factory with blue walls and a yellow floor line.

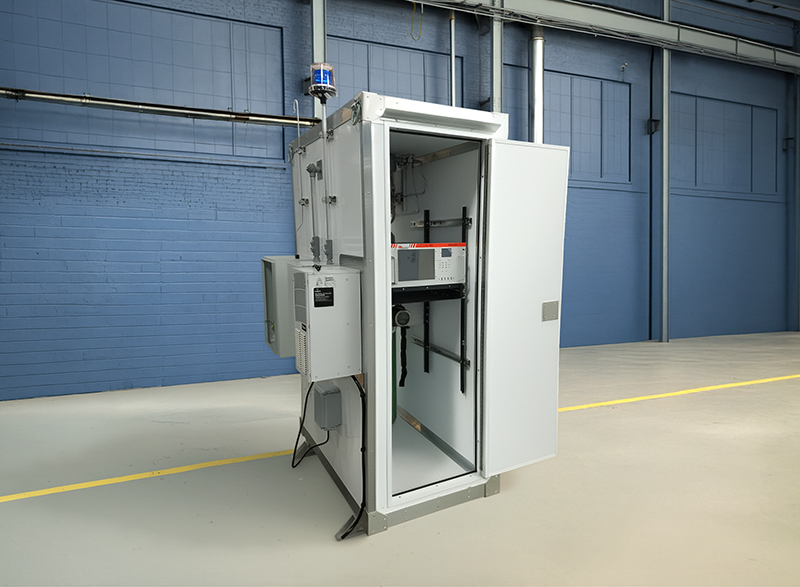

EnergyMEDOR® Mini Shelter

MINIMIZES FOOTPRINT IN PORTABLE SHELTER

Industrial control cabinet with open door, electrical components inside, and warning lights on top, in a warehouse setting.

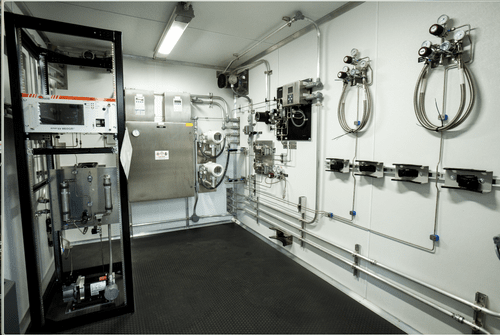

EnergyMEDOR® Analyzer Building

MULTIPLE SIZES AND CONFIGURATIONS

“MEDOR® is the most accurate and reliable analyzer in the industry for online monitoring of commercial odorant, H2S, and total sulfur.”

MEDOR® Platform Improves Data Capture

Empty white background.

  • High performance in the most stringent applications with the lowest cost of ownership on the market.

Line graph and bar chart showing data trends.

  • Fourteen commercial odorants sulfur compounds (i.e. H2S, THT, mercaptans) are analyzed.

Black background with a white electronic diagram consisting of three horizontal lines with two circles on each end, connected by vertical lines.

  • More than one stream can be measured by each analyzer making it cost-efficient.

Line graph with peaks and valleys inside a white border on a black background.

  • Verify types and proper ratios of odorant including ppm and ppb levels.

Camera focus frame with central circle and corner brackets on black background.

  • MEDOR® is proven to be the most accurate and reliable analyzer in the industry for sulfur compounds.

Gear surrounded by circular arrows indicating process or cycle, on a black background.

  • The fully automated platform ensures that the data is validated and calibrated continuously.

Make it Autonomous

The Support Gas Generator is an innovation designed by CAS that enables the MEDOR® series analyzers to be fully autonomous. This option eliminates the need for changing out nitrogen/compressed gas cylinders.
support Gas Generator Brochure

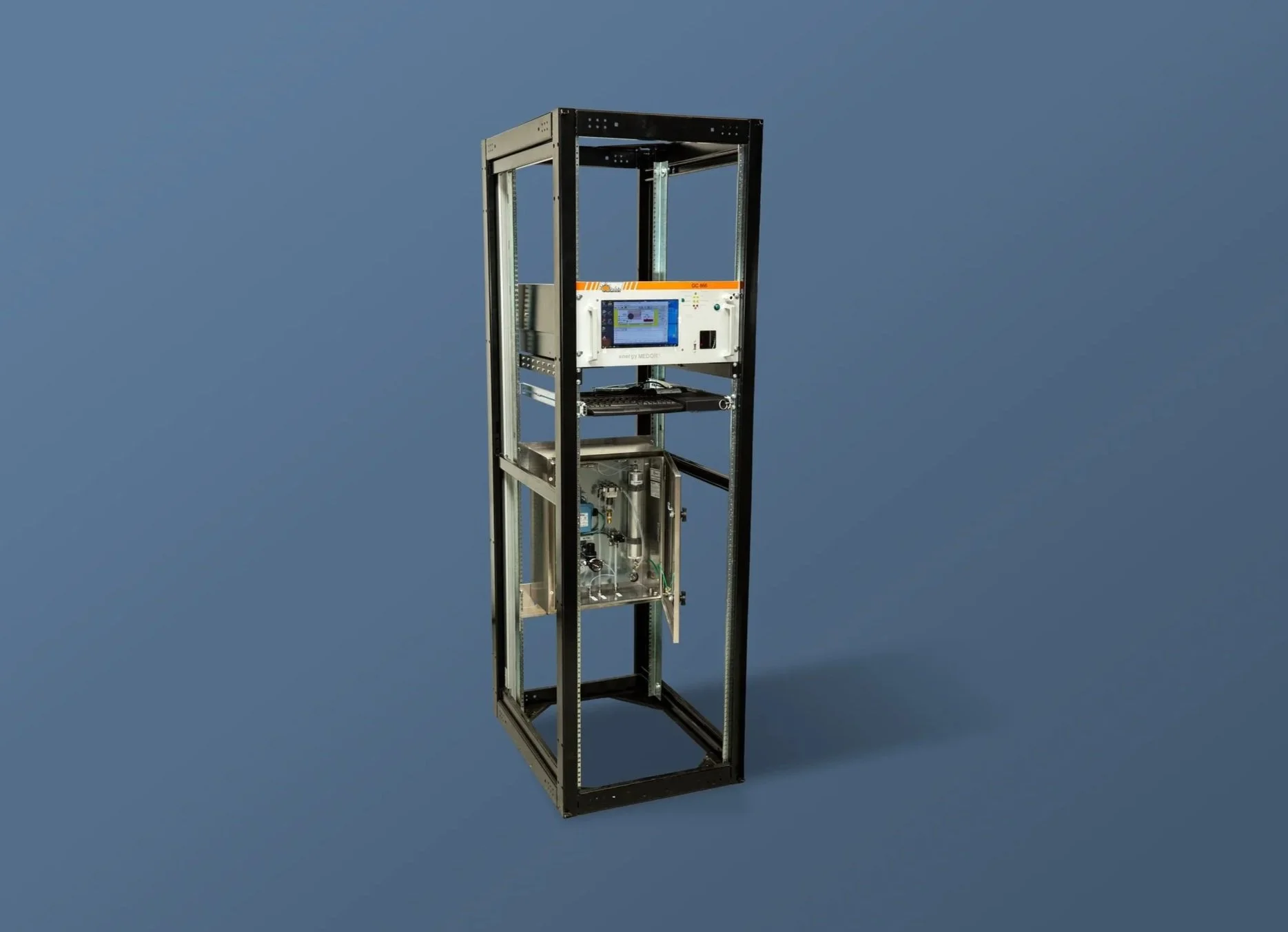

A tall, black metal frame structure holding electronic and mechanical components, including a touchscreen interface, a metallic box with tubing, and other hardware, set against a plain blue background.
ENERGYMEDOR® RACK MOUNTED WITH SUPPORT GAS GENERATOR

Features & Options

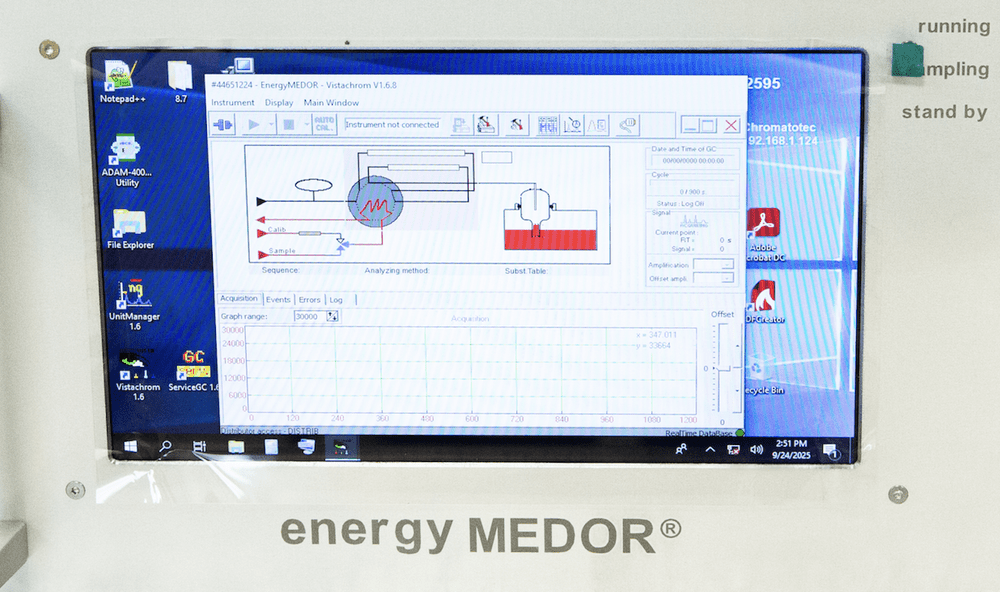

A computer screen displaying scientific software for environmental analysis, with various icons and a graph, mounted on a white wall with the label 'energy MEDOR' at the bottom.

    • ADVANCED COLOR DISPLAY

    • INTUITIVE USER INTERFACE

    • FLEXIBLE I/O AND BUILT-IN DATA ACQUISITION

    • PROPRIETARY SOFTWARE ENABLES REMOTE MONITORING AND INJECTION CONTROL

    • INSTRUMENT SET UP, CONTROL AND ACCESS TO STORED DATA

    • AUTOMATIC INTERNAL CALIBRATION

ENERGYMEDOR® Brochure
A woman wearing safety glasses and a navy shirt working on a scientific instrument or machinery in a laboratory setting.

    • TRAINED TECHNICIANS SERVICE YOUR MEDOR® TO GUARANTEE ACCURACY AND PERFORMANCE

    • MAINTAIN CALIBRATION EQUIPMENT, CYLINDERS, AND TOOLS SPECIFIC TO OPTIMAL SERVICE

    • FULLY COMPLIANT TO NIST TRACEABILITY STANDARDS

MEDOR SERVICES BROCHURE

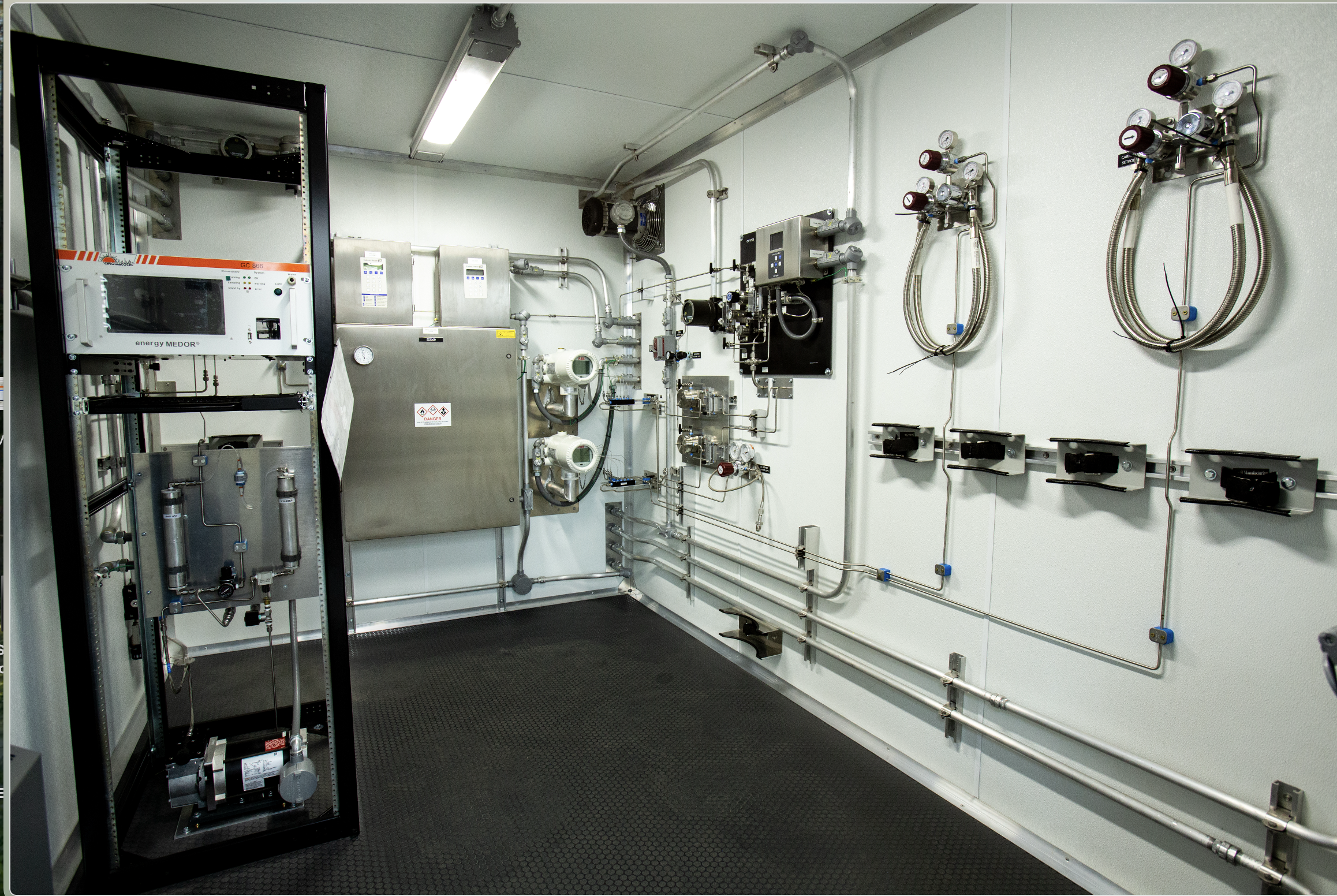

Room with industrial equipment, pipes, gauges, control panels, and hoses, likely part of a laboratory or manufacturing facility.

    • CONFIGURATIONS INCLUDE TABLETOP, RACK MOUNTED AND WALL MOUNTED

    • DIFFERENT MATRICES ARE AVAILABLE

    • HVAC CAN BE INSTALLED IN AN ENCLOSED RACK

    • EXPLOSION PROOF VERSIONS AVAILABLE: CLASS 1 DIVISION 1 AND 2

    • SUPPORT GAS GENERATOR

    • RENTAL OPTIONS AVAILABLE

H2SMEDOR® Brochure

Not Ready to Buy?

MEDOR Series Analyzer units are available for rent or lease

CONTACT US
An open server rack frame with electronic components including a display monitor, a keyboard, and various circuit boards, against a plain background.

Design | Manufacture | Deliver

Fully integrated turnkey systems meet your exact specifications.

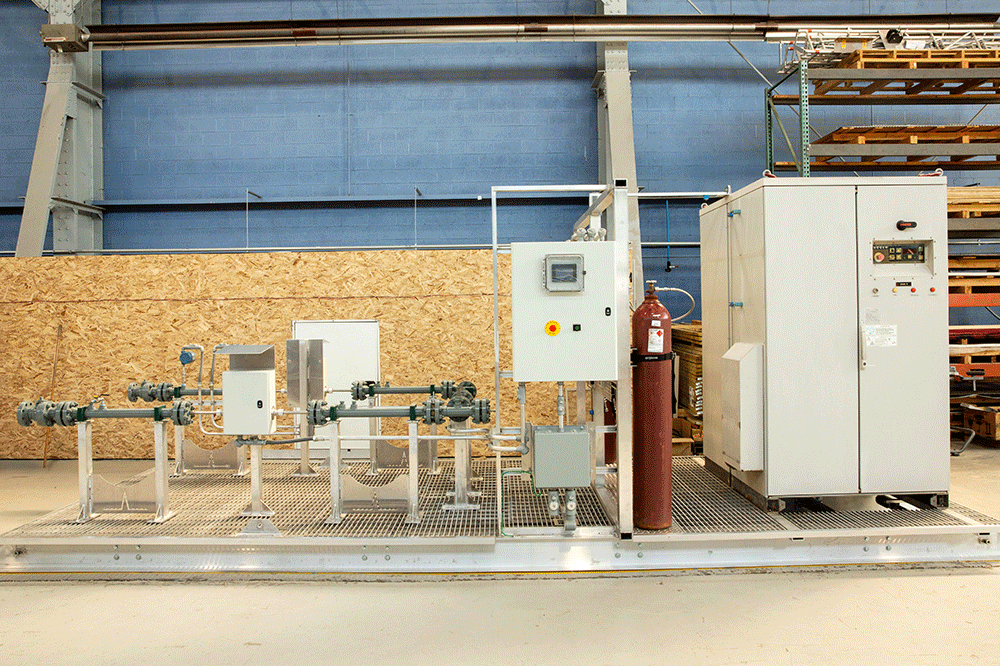

Industrial pipeline system inside a warehouse with large pipes connected to a grated platform, large container, and overhead crane.
